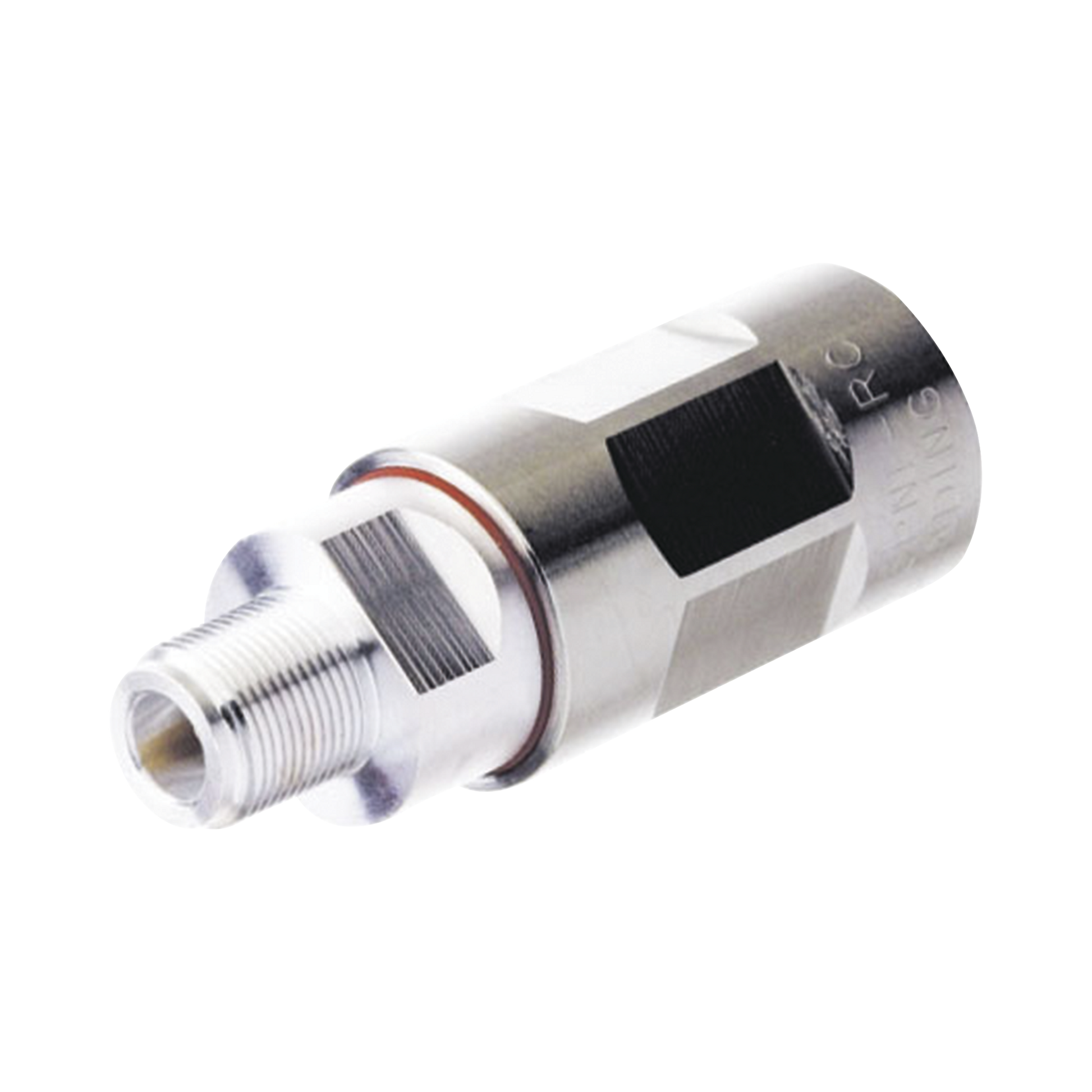

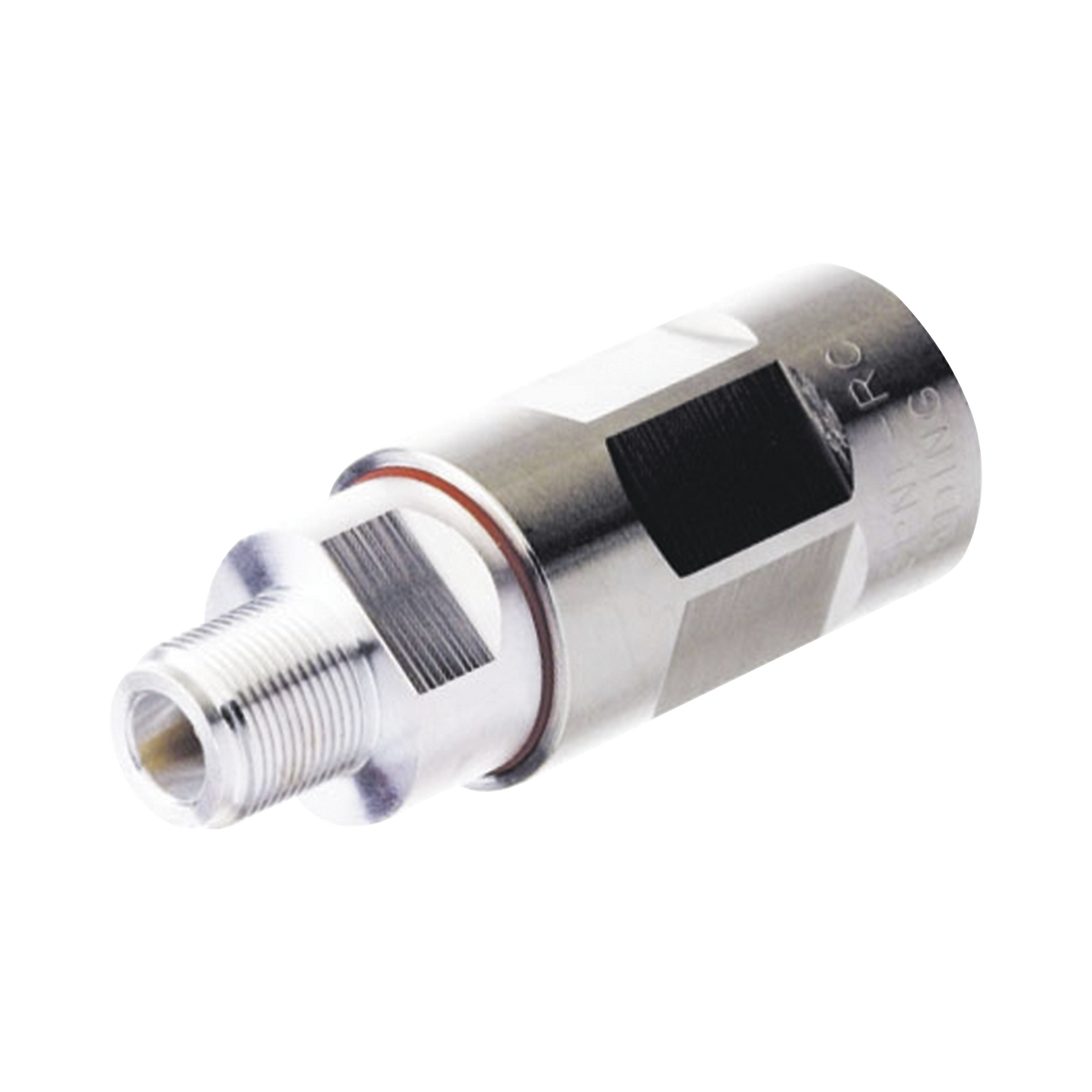

Interface
| N Female |
|
Body Style
| Straight |
|
Brand
| HELIAX® |
|
Mounting Angle
| Straight |
|
|
Connector Impedance
| 50 ohm |
|
Operating Frequency Band
| 0 – 6100 MHz |
|
Cable Impedance
| 50 ohm |
|
RF Operating Voltage, maximum (vrms)
| 707.00 V |
|
dc Test Voltage
| 2000 V |
|
Outer Contact Resistance, maximum
| 0.30 mOhm |
|
Inner Contact Resistance, maximum
| 2.00 mOhm |
|
Insulation Resistance, minimum
| 5000 MOhm |
|
Average Power
| 0.6 kW @ 900 MHz |
|
Peak Power, maximum
| 40.00 kW |
Insertion Loss, typical
| 0.05 dB |
|
Shielding Effectiveness
| -110 dB |
