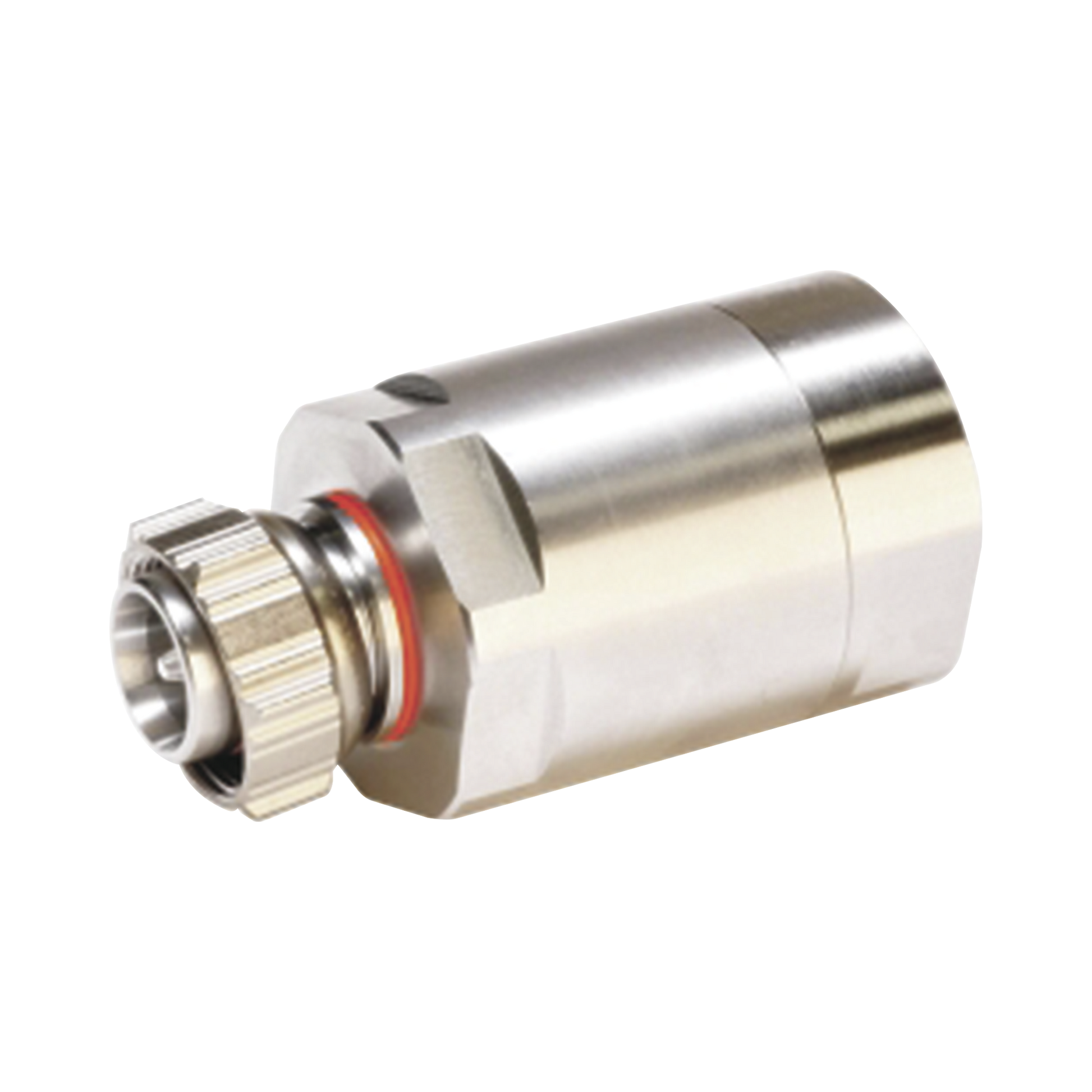

Interface
| 4.3-10 Male |
|
Body Style
| Straight |
|
Mounting Angle
| Straight |
|
Ordering Note
| CommScope® standard product (Global) |
|
|
Connector Impedance
| 50 ohm |
|
Operating Frequency Band
| 0 – 5000 MHz |
|
Cable Impedance
| 50 ohm |
|
3rd Order IMD Dynamic Test Method
| Two +43 dBm carriers |
|
3rd Order IMD, typical
| -166 dBc @ 1800 MHz |
|
3rd Order IMD Test Method
| Two +43 dBm carriers |
|
RF Operating Voltage, maximum (vrms)
| 1415.00 V |
|
dc Test Voltage
| 4000 V |
|
Outer Contact Resistance, maximum
| 1.50 mOhm |
|
Inner Contact Resistance, maximum
| 0.40 mOhm |
|
Insulation Resistance, minimum
| 5000 MOhm |
|
Average Power
| 3.0 kW @ 900 MHz |
|
Peak Power, maximum
| 40.00 kW |
Insertion Loss, typical
| 0.05 dB |
|
Shielding Effectiveness
| -130 dB |
